Large Machine Capacity
Big machines for big ideas.
Our Equipment
In addition to the skills and knowledge of our journeyman machinists, our large-capacity machining ability sets us apart from the rest of the industry.

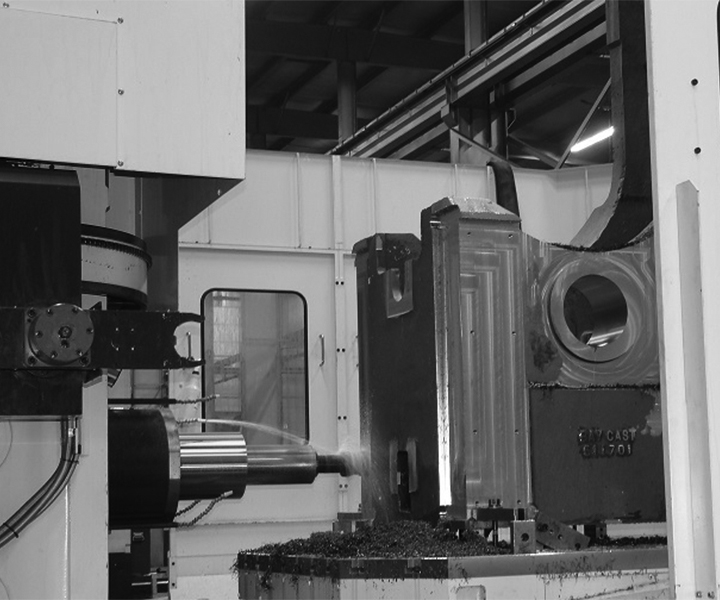

CNC Horizontal Boring Bar
- Table size: 79″ x 138″
- Table capacity: up to 55,000 lbs.
- X-travel: up to 240″
- Y-travel: up to 140″
- Z-travel: up to 60″
CNC Horizontal Machining Center
- Pallet size: 39″ x 39″
- X-travel: up to 67″
- Y-travel: up to 55″
- Z-travel: up to 60″
CNC Vertical Lathe
- Table diameter: 118″
- Maximum swing: 216.5″
- Table capacity: up to 44,000 lbs.
CNC Horizontal Lathe
- Maximum swing: 41.7″
- Turning diameter: 32.5″
- Machining length: up to 200.78″
CNC Vertical Machining Centers
Model 1
- X-travel: up to 538″
- Y-travel: up to 48″
- Z-travel: up to 26″
Model 2
- X-travel: up to 245″
- Y-travel: up to 94″
- Z-travel: up to 42″
Coordinate Measuring Machine (CMM)
- Measuring range (X): up to 78.74″
- Measuring range (Y): up to 157.48″
- Measuring range (Z): up to 70.87″
- Maximum weight: up to 14,300 lbs.
- Accuracy: ±0.00013″
